by Ultra Base Systems Verified company
Photo credit: Ultra Base Systems
Surface typeModular interlocking base panel
Total thickness1.25 in
InterlockingInterlocking design that allows expansion and contraction; edge, corner and ramp pieces available
Warranty5 years (1 year on accessories)
About this product
A structural interlocking panel used as an alternative to a concrete or asphalt pad, with fast drainage and room for thermal expansion so the surface does not buckle. The company says it cuts installation time by about 40 percent.
Best for
Sports
BasketballPickleballTennisFacility types
CourtPadSpecifications
Mounting and size
Weight10.2 lbs per panel (1.86 lbs per sq ft)
Infill and safety
Drainage rate424.5 in/hr vertical; 12.1 in/hr horizontal
Surface system
Surface typeModular interlocking base panel
Total thickness1.25 in
Tile size30 x 30 in (28 x 28 in, 5.44 sq ft, once installed)
InterlockingInterlocking design that allows expansion and contraction; edge, corner and ramp pieces available
ColorsBlack
Other details
Load capacityexceeds 500 psi
Certifications and warranty
Warranty5 years (1 year on accessories)
Source: company website · View the source → · Last verified Oct 8, 2026
Used in these projects
More from Ultra Base Systems
Ultra Base Professional PanelModular interlocking base panel

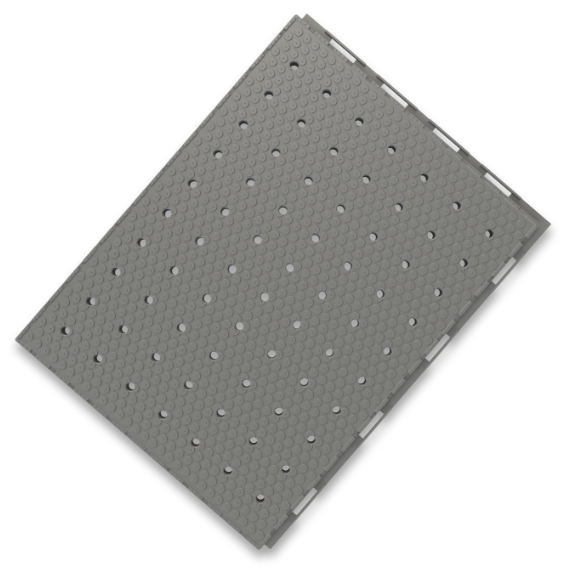

Ultra Base MAX PanelModular interlocking base panel
Ultra Base Omni PanelModular interlocking base panel
